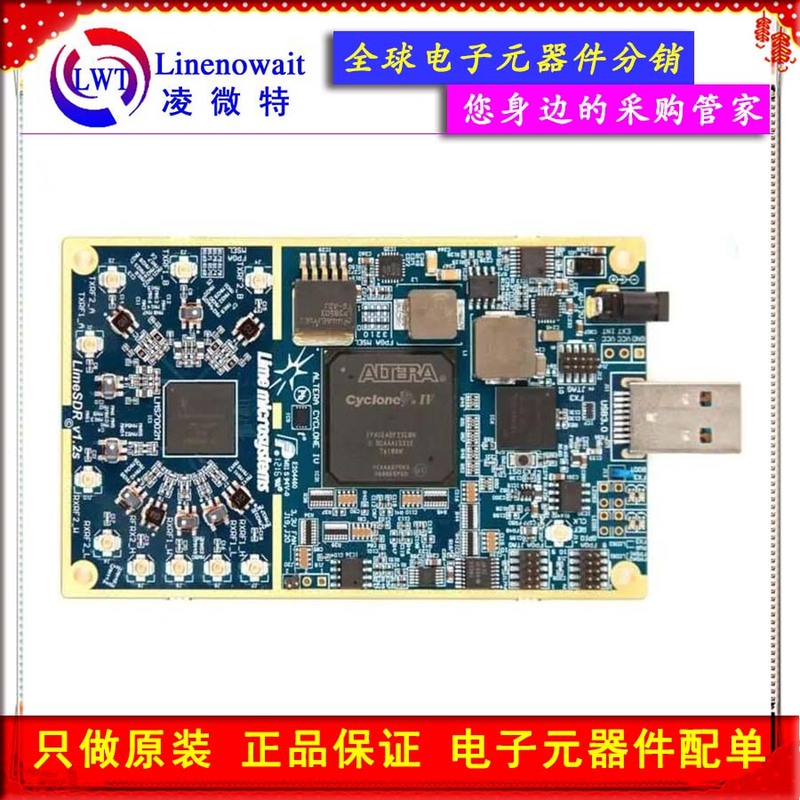

Lime Microsystems Lime Software Defined Radio (LimeSDR) Board and Enclosure is a low-cost, open-source, and apps-enabled board that supports any type of wireless communication standard. This LimeSDR board can send and receive UMTS, LTE, GSM, LoRa, BLUETOOTH®, Zigbee, RFID, and digital broadcasting. The LimeSDR board is the first SDR to integrate with Snappy Ubuntu Core. These SDR platforms are ideal for radio astronomy, 2G to 4G cellular basestations, IoT gateways, RADAR, aviation transponders, media streaming, and developers manipulating wireless signals.

The LimeSDR Board features 10 U.FL connectors for connecting external antennas, such as the Taoglas CAB.721. The LimeSDR with Aluminum Kit and LimeSDR Acrylic Case also features SMA (SubMiniature A) connectors for connecting external antennas, such as the Taoglas TG.09.0113. The CS-LIME-02 is an enclosure for a single board computing LimeSDR built with an acrylic case.

FEATURES

Lime Microsystems LMS7002M MIMO FPRF transceiver

Altera Cyclone IV EP4CE40F23 and also compatible with EP4CE30F23 FPGA

256MB DDR2 SDRAM

Cypress USB 3.0 CYUSB3014-BZXC controller

Rakon RPT7050A @ 30.72MHz oscillator

100KHz to 3.8GHz continuous frequency range

61.44MHz bandwidth

10 U.FL connectors (6 RX and 4 TX)

Up to 10dBm power output

2 x 2 MIMO

micro USB connector or optional external power supply

Programmable LEDs

100mm x 60mm dimensions

APPLICATIONS

Radio astronomy

RADAR

Media streaming

IoT gateway

HAM radio

Wireless keyboard and mice emulation and detection

2G to 4G cellular base station

Utility meters

Aviation transponders

Drone command and control

Time pressure monitoring systems

Test and measurement
