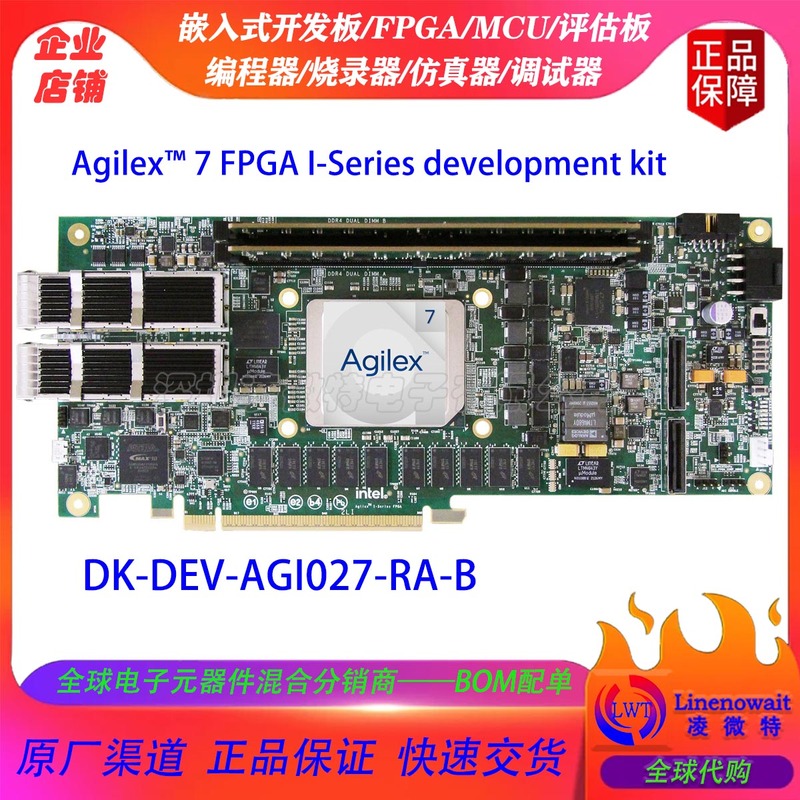

The Agilex™ 7 FPGA I-Series development kit

Key Features

Features an Agilex 7 FPGA I-Series Device (AGIB027R29A1E1VB) with 2700 KLE, in a 2957A package

Supports PCIe 5.0 and CXL x16 via edge connector and MCIO ports using R-Tile transceivers (CXL IP is licensed separately)

Includes two QSFPDD ports for high-speed optical or electrical connectivity up to 56 Gbps per lane

Offers two on-board DDR4 x72 ECC memory channels and two DIMM sockets supporting up to DDR4-3200

Provides multiple configuration modes including Avalon Streaming x8 and onboard FPGA Download Cable II and external JTAG header for flexible programming

Integrated MAX 10 system controller for power sequencing, monitoring, and temperature sensing

Comes with BTS GUI, Clock Controller, and Power Monitor for board validation and diagnostics

Includes USB, I2C, and UART interfaces for system communication and control

Delivered with DDR4 DIMM, USB cable, 240W power adapter, and international power cords

Offering Brief

Device FamilyAgilex® 7 FPGAs and SoC FPGAs I-Series

Offering StatusProduction

Device OPN(s) on BoardAGIB027R29A1E1VB

DemoNo

Form FactorPCIe

Power12V DC input via PCIe edge connector or included 240W power adapter

InterfacesPCIe Gen5 x16

CXL x16 via MCIO

2x QSFPDD

USB (Micro USB)

JTAG

UART

I2C

GPIO

MemoryDDR4 x72 ECC (2 channels, 32 GB each, 1333 MHz); 2x DDR4 DIMM sockets (up to 128 GB total); QSPI 2Gb flash for config

ConnectorsPCIe edge connector; 2x MCIO connectors; 2x QSFPDD cages; 2x DDR4 DIMM sockets; Micro USB port; JTAG header; Fan connector; I2C headers

Switches & LEDsPower slide switch; PCIe lane width DIP switches; Configuration mode DIP switches; Clock source DIP switches; I2C and PMBus DIP switches; JTAG source DIP switches; CPU reset button; PCIe reset button; CXL reset button; USB PHY reset button; QSFPDD reset button; User LEDs; Status LEDs; Over-temp LED

Block Diagram

What’s Included?

Agilex 7 FPGA I-Series development board

16Gb DDR4 DIMM module

USB 2.0 Micro USB cable

240 W power adapter and international cords
