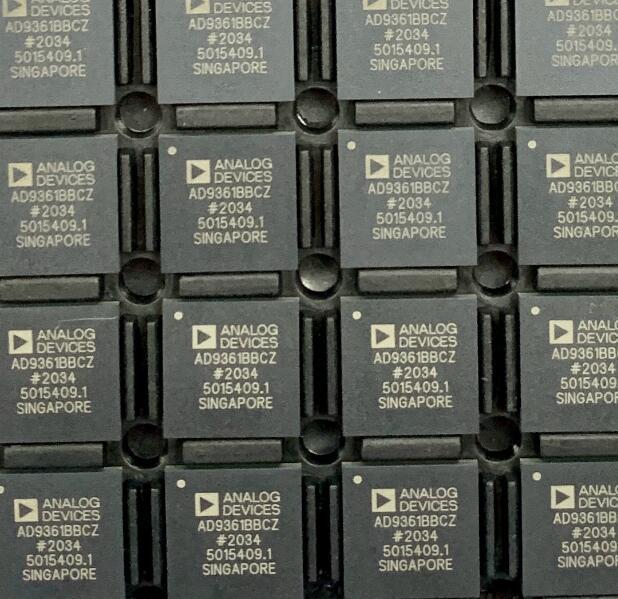

RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs

TX band: 47 MHz to 6.0 GHz

RX band: 70 MHz to 6.0 GHz

Supports TDD and FDD operation

Tunable channel bandwidth: <200 kHz to 56 MHz

Dual receivers: 6 differential

Superior receiver sensitivity with a noise figure of 2 dB at 800 MHz LO

RX gain control

Real-time monitor and control signals for manual gain

Independent automatic gain control

Dual transmitters: 4 differential outputs

Highly linear broadband transmitter

• TX EVM: ≤−40 dB

• TX noise: ≤−157 dBm/Hz noise floor

• TX monitor: ≥66 dB dynamic range with 1 dB accuracy

Integrated fractional-N synthesizers

2.4 Hz maximum local oscillator (LO) step size

Multichip synchronization

CMOS/LVDS digital interface
